Удлинительный термокабель
Extension Thermocouple Wire For High Temperature Application
Description of Goods: Extension Thermocouple Cable
Type: KX
Rated Voltage: N/A
Working Temperature: -25—+200 C

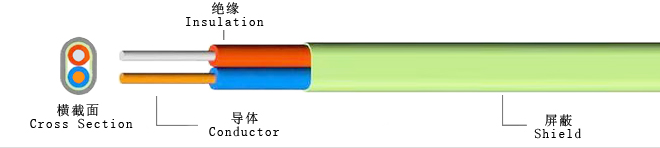

Conductor: Thermocouple Wire
Insulation: PVC (Polyvinyl Chloride)
Jacket: PTFE (Polytetrafluoroethylene) / Fiberglass
Shield: Tin-plated Copper Wire
Color Options: Red/Yellow/Blue/White/Brown
Know-how & Feature
Extension Thermocouple Wire stands for the Pairs of Wire or Cables which possess the Same EMF to the Matched Thermocouple under certain Working Temperature, with which, connected Measurement Devices, in order to compensate the deviation at the Junction with Thermocouple caused by Temperature Change, divided into Extension Type & Compensation Type.

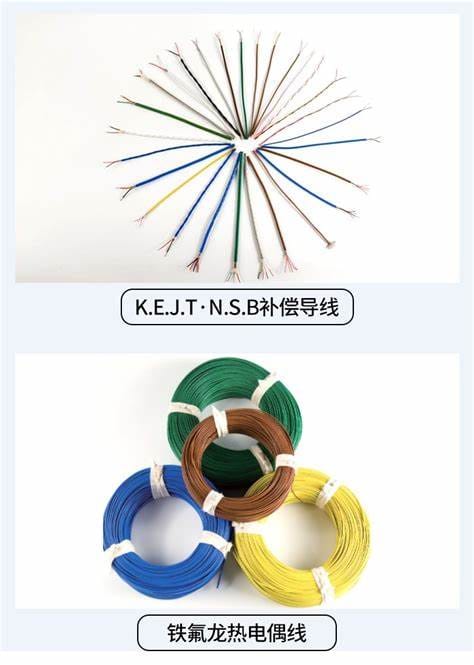

Type & Consequent Thermocouple
| 型号 | 名称 | 配用热电偶 | 热电偶分度号 | 产品用型号含义 |
| SC或RC | 铜 - 铜镍 0.6 补偿型导线 | 铂铑 10- 铂热电偶 铂铑 13- 铂热电偶 | S或R | S- 表示热电特性允差为精密级补偿导线； P- 表示有屏蔽层的补偿导线； G- 表示一般用补偿导线； V- 聚氯乙烯材料（ PVC ）； H- 表示耐热用补偿导线； F- 聚四氟乙烯材料； R- 表示多股补偿导线； B- 无碱玻璃丝材料 |
| KCA KCB KX | 铁 - 铜镍 22 补偿型导线 铜 - 铜镍 40 补偿型导线 镍铬 10- 镍硅 3 延长型导线 | 镍铬 - 镍硅热电偶 | K | |
| NC NX | 铁 - 铜镍 18 补偿型导线 镍铬 14- 镍硅延长型导线 | 镍铬硅 - 镍硅热电偶 | N | |
| EX | 镍铬 10- 铜镍 45 延长型导线 | 镍铬 - 铜镍热电偶 | E | |
| JX | 铁 - 铜镍 45 延长型导线 | 铁 - 铜镍热电偶 | J | |
| TX | 铜 - 铜镍 45 延长型导线 | 铜 - 康铜热电偶 |
