Кабель NC030 (CuNi23 Cable)
NC030 Cable
Chemical Content
Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
Cd | Pb | Hg | Cr | ||||||
23 | 0.5 | – | – | Bal | – | ND | ND | ND | ND |
Low Resistance Heating Alloy—NC030 is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products.
Mechanical Property
Max Continuous Service Temp250ºCResisivity at 20ºC0.35%ohm mm2/mDensity8.9 g/cm3Thermal Conductivity16(Max)Melting Point115ºCTensile Strength,N/mm2 Annealed,Soft270~420 MpaTensile Strength,N/mm2 Cold Rolled350~840 MpaElongation(anneal)25% (Max)Elongation(cold rolled)2% (Max)EMF vs Cu, μV/ºC (0~100ºC)-25Micrographic StructureausteniteMagnetic PropertyNon
CuNi23Mn Tradenames:
Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180
Resistance Alloy 180 – CuNi23Mn Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm

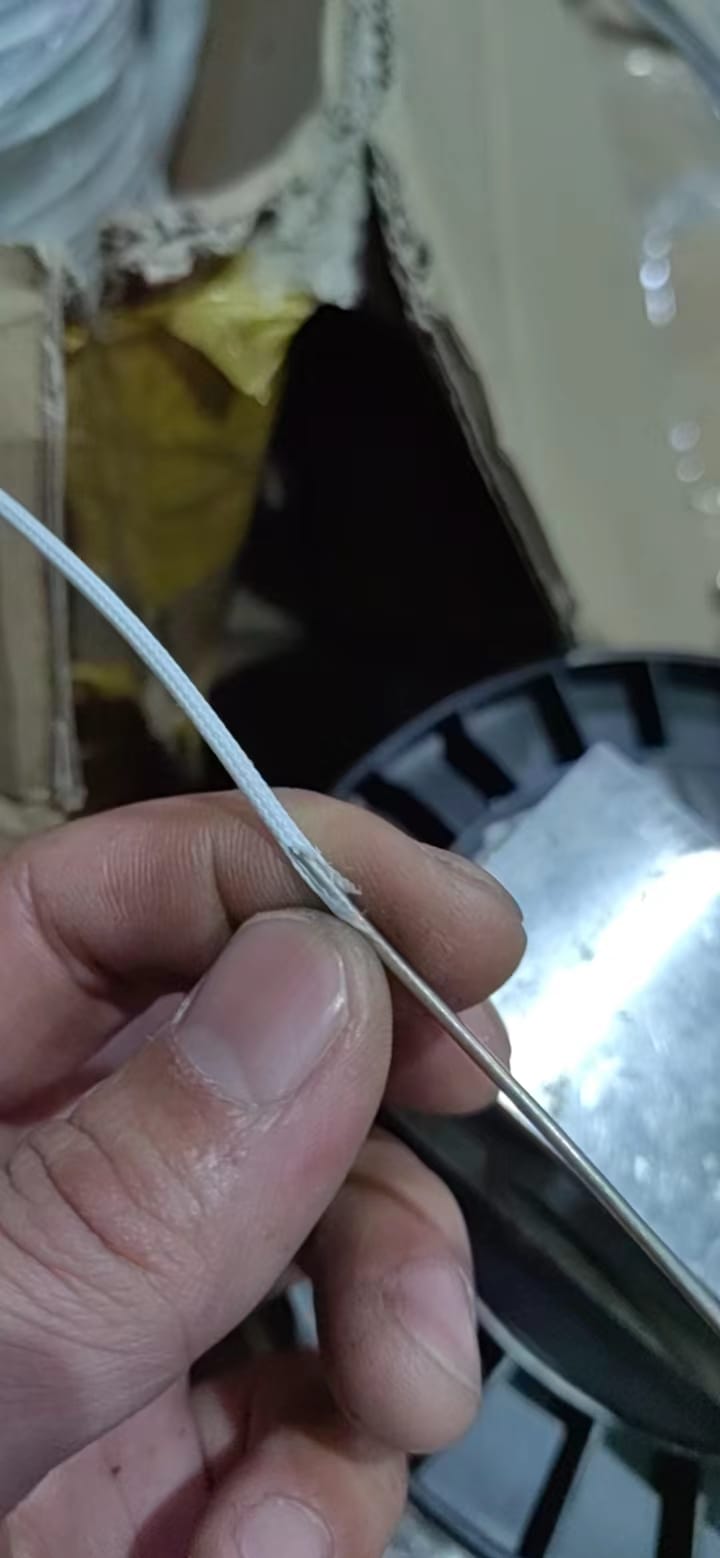

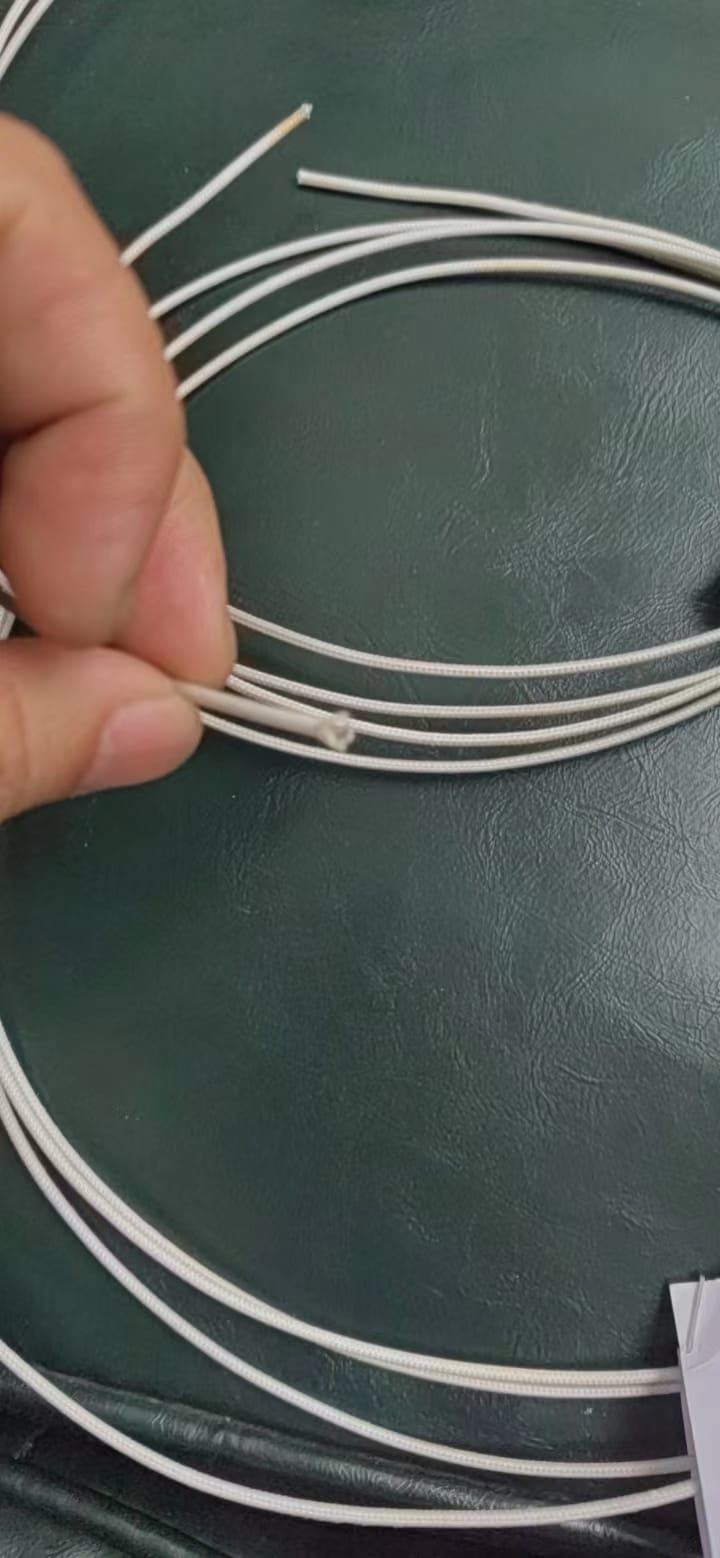

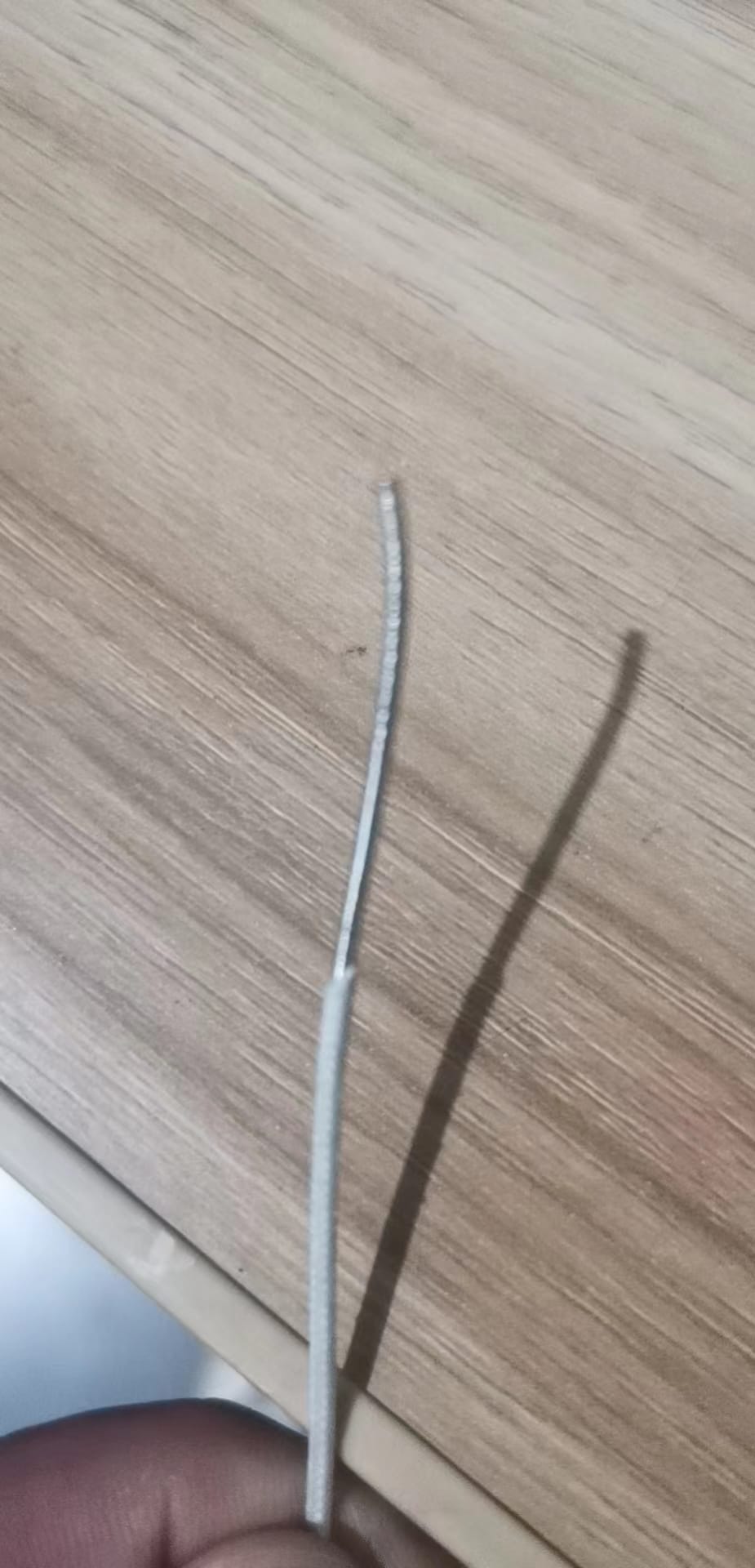

Enameled condition is available
APPLICATION

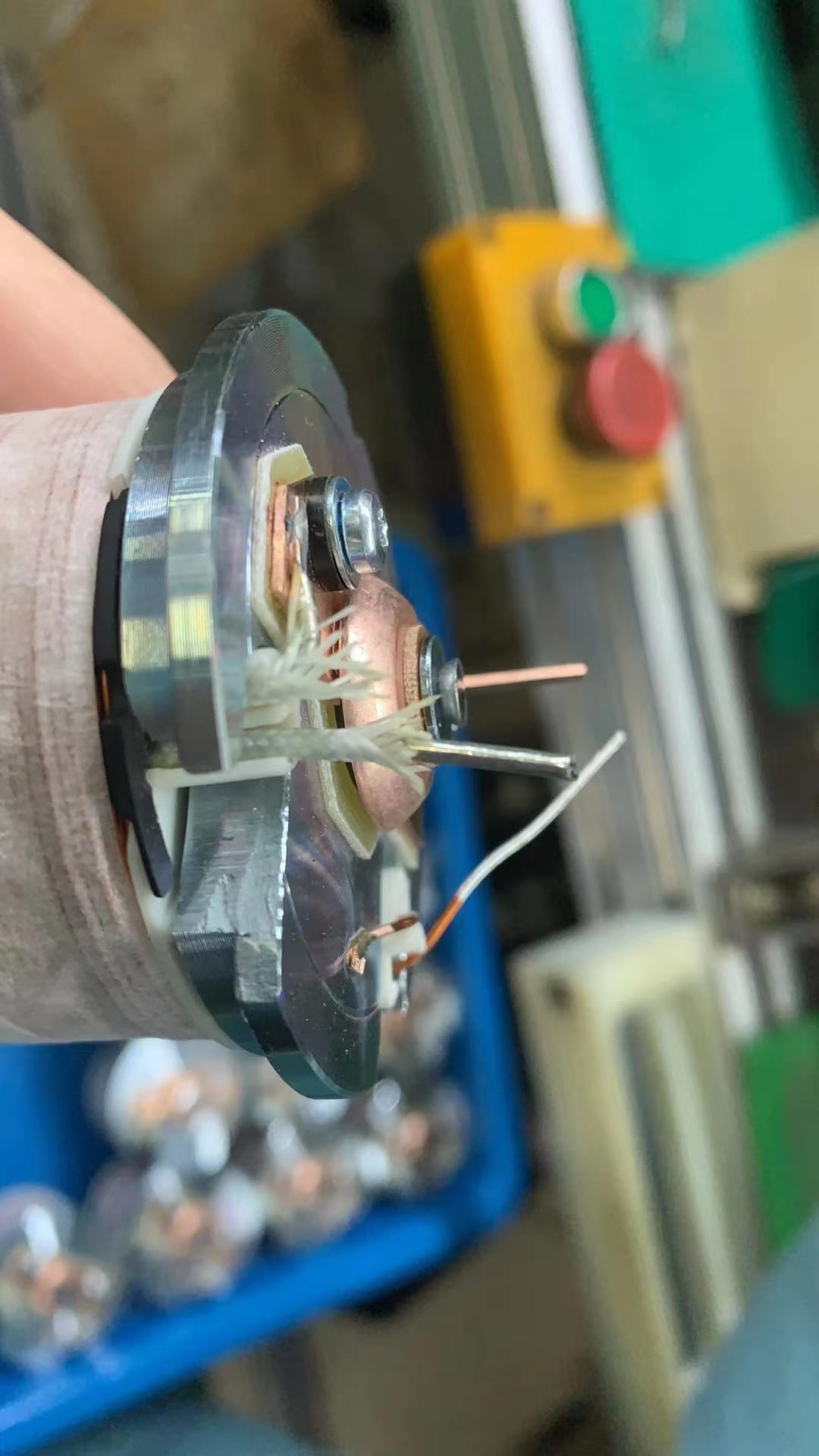

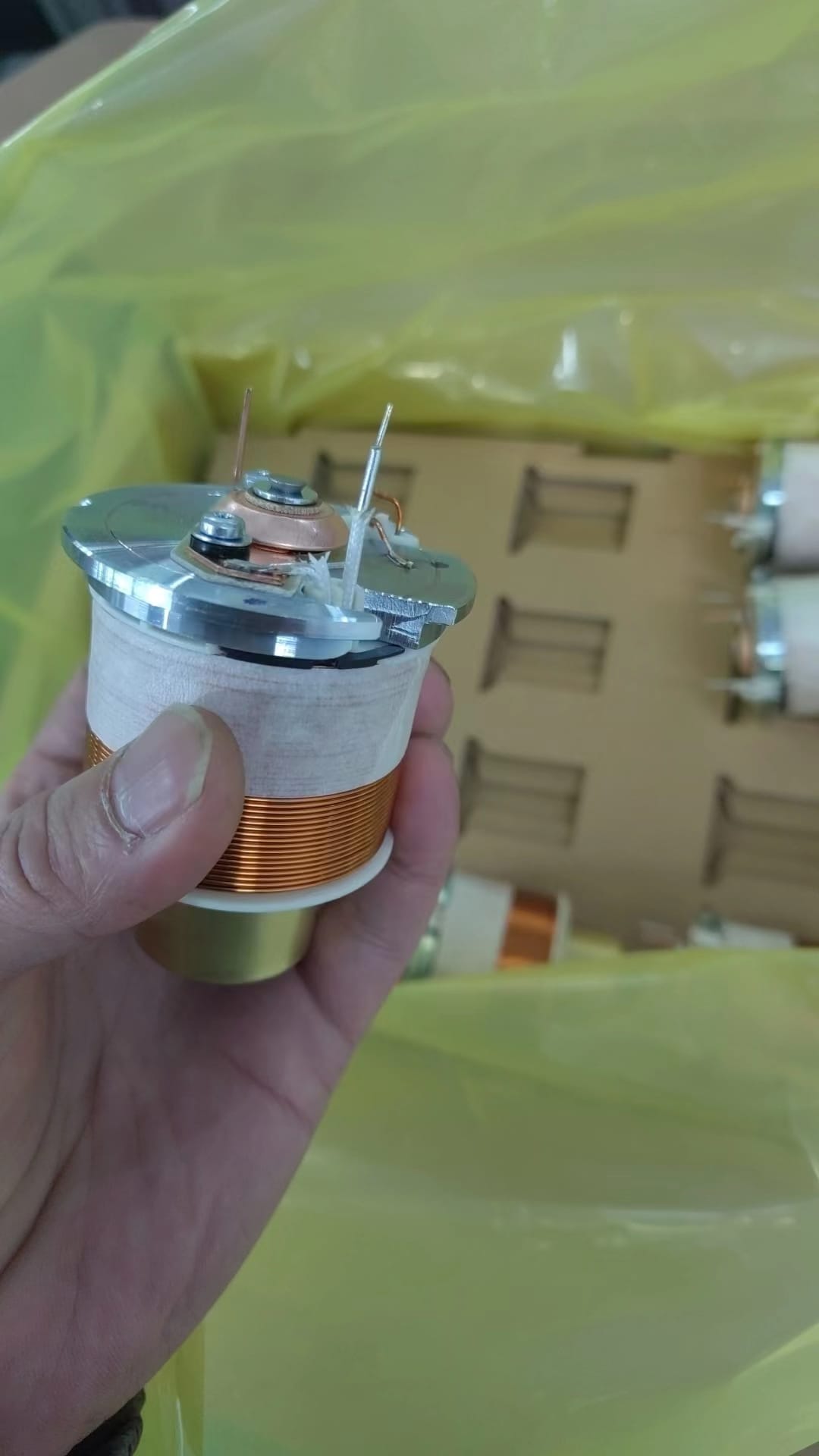

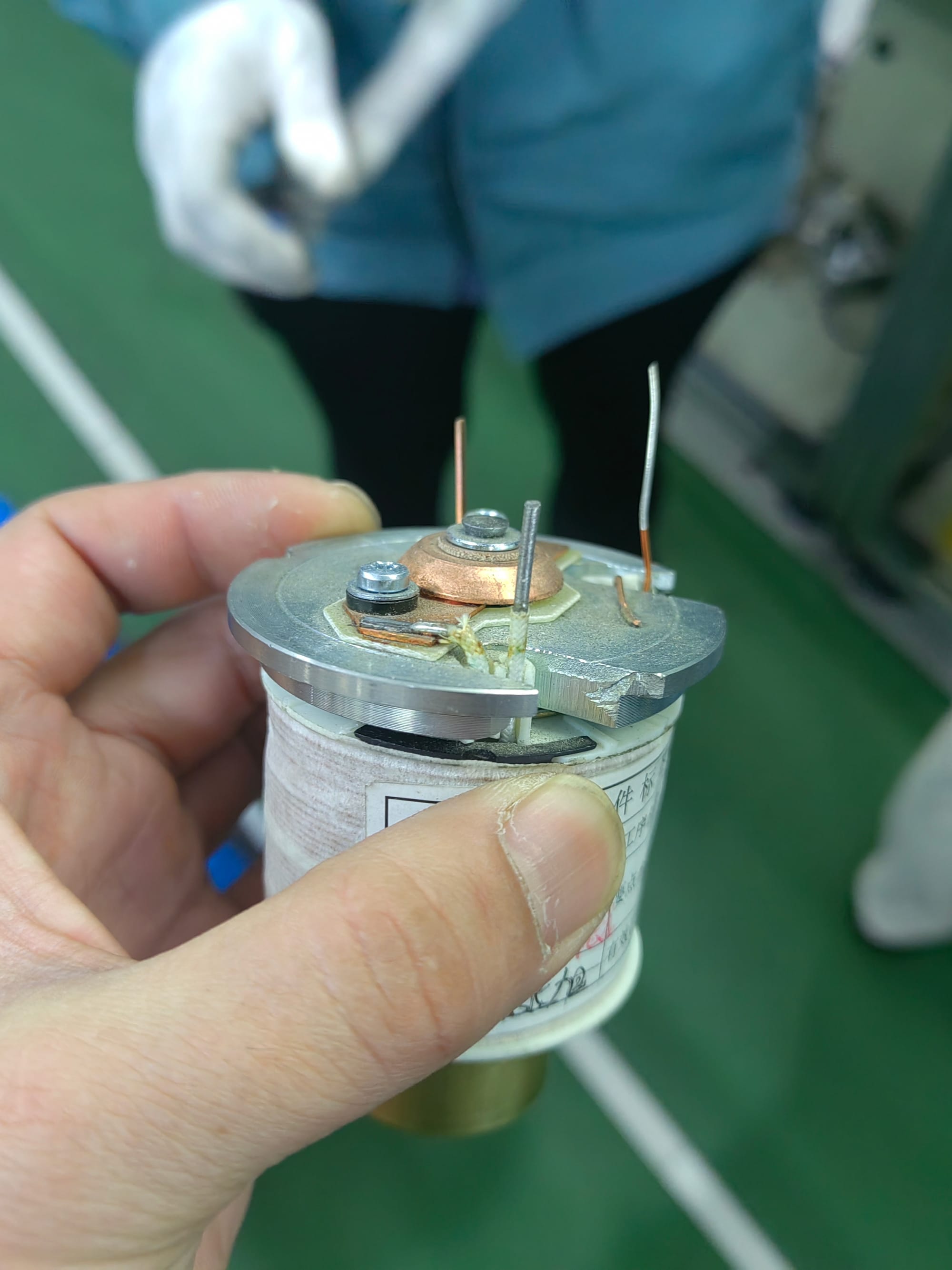

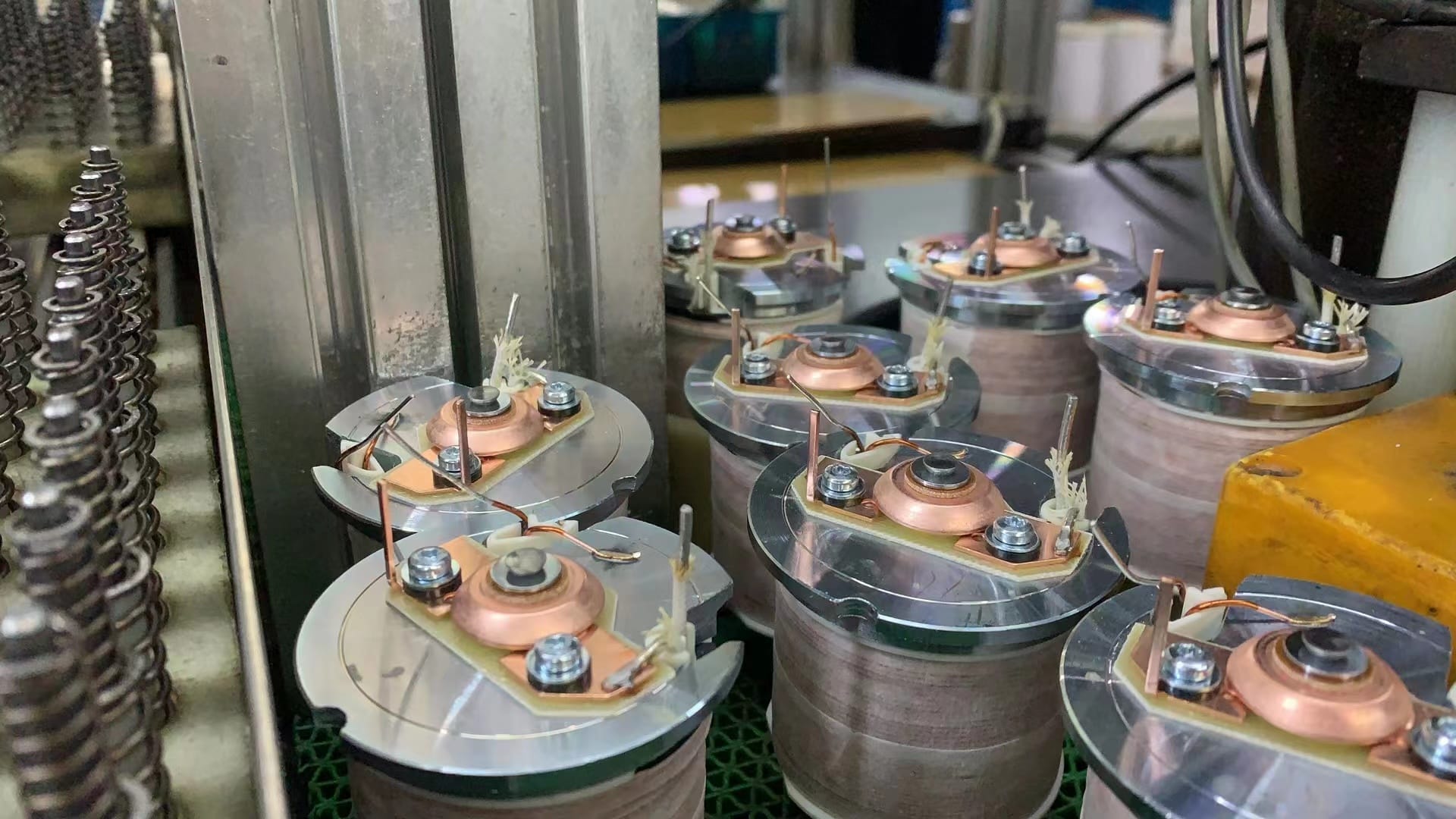

BOSCH STARTERS
Feedback from clients

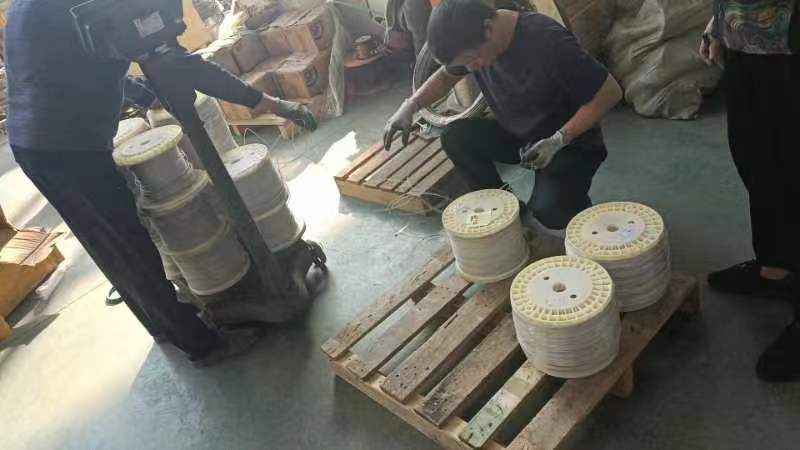

Transportation Package—LCL
